关于MySQL的死锁

MySQL的死锁指的是两个事务互相等待的场景,这种循环等待理论上不会有尽头。

比如事务A持有行1的锁,事务B持有行2的锁,然后事务A试图获取行2的锁,事务B试图获取行1的锁,这样事务A要等待事务B释放行2的锁,事务B要等待事务A释放行1的锁,两个事务互相等待,谁也提交不了。

这种情况下MySQL会选择中断并回滚其中一个事务,使得另一个事务可以提交。MySQL会记录死锁的日志。

制造一个死锁的场景

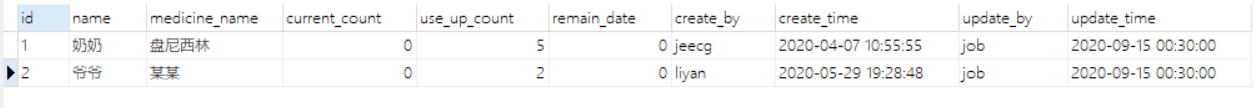

新建一个表,添加两条数据:

创建两个事务,事务执行的sql分别是:

事务A:

1
2
3
4
set autocommit=0;
update medicine_control set current_count=1 where id='1';
update medicine_control set current_count=1 where id='2';
COMMIT;

事务B:

1
2
3
4
set autocommit=0;
update medicine_control set current_count=2 where id='2';
update medicine_control set current_count=2 where id='1';
COMMIT;

可见,事务A先改id=1的数据再改id=2的数据,事务B相反,先改id=2的数据再改id=1的数据。

两个事务sql的执行顺序如下:

事务A事务B
set autocommit=0;
update medicine_control set current_count=1 where id='1';
set autocommit=0;
update medicine_control set current_count=2 where id='2';
update medicine_control set current_count=1 where id='2';
update medicine_control set current_count=2 where id='1';

对每一步的说明:

1,事务A开始事务。

2,事务A修改id=1的数据,持有了该行的锁。

3,事务B开始事务。

4,事务B修改id=2的数据,持有了该行的锁。

5,事务A试图修改id=2的数据,此行的锁被事务B持有,于是事务A等待事务B释放锁。

事务B提交或回滚都能释放锁。

6,事务B试图修改id=1的数据,此行的锁被事务A持有,于是事务B等待事务A释放锁。

事务A提交或回滚都能释放锁。当执行到这一步时,MySQL会立即检测到死锁,并且中断并回滚其中一个事务。此次回滚的是事务B,执行SQL的返回信息是这样的:

[SQL]update medicine_control set current_count=2 where id='1';

[Err] 1213 - Deadlock found when trying to get lock; try restarting transaction

查看最近一次死锁的日志

执行sql命令:

1
SHOW ENGINE INNODB STATUS;

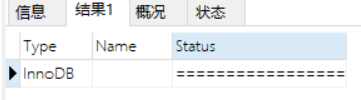

执行结果如下:

其中的status字段里包含了最近一次死锁的日志。

注: 直接使用show engine innodb status查看,无法获取阻塞锁线程

直接使用show engine innodb status查看,无法判断到问题的根因;

需要使用innodb_lock_monitor来获取阻塞锁线程;

随便在一个数据库中创建这个表innodb_lock_monitor,就会打开lock monitor

1
2
3
4
5
6
7
8
9
MySQL [test]> CREATE TABLE innodb_lock_monitor (a INT) ENGINE=INNODB;
Query OK, 0 rows affected, 1 warning (0.07 sec)

MySQL [test]> show warnings\G
*************************** 1. row ***************************
Level: Warning
Code: 131
Message: Using the table name innodb_lock_monitor to enable diagnostic output is deprecated and may be removed in future releases. Use INFORMATION_SCHEMA or PERFORMANCE_SCHEMA tables or SET GLOBAL innodb_status_output=ON.
1 row in set (0.00 sec)

说明:这个在5.6中有一个warning,但不影响使用。

死锁日志的内容

注: 关于日志展示的0-11字段信息

hex和asc的关系:asc值转成16进制为hex的值

但这就意味着可能asc值会乱码(例如值过长或者为中文等情况)

上面制造的死锁,其死锁日志的内容是这样的:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
=====================================
2020-09-15 14:46:28 0x7f732fcff700 INNODB MONITOR OUTPUT
=====================================
Per second averages calculated from the last 37 seconds
-----------------
BACKGROUND THREAD
-----------------
srv_master_thread loops: 609 srv_active, 0 srv_shutdown, 23969851 srv_idle
srv_master_thread log flush and writes: 0
----------
SEMAPHORES
----------
OS WAIT ARRAY INFO: reservation count 100
OS WAIT ARRAY INFO: signal count 98
RW-shared spins 0, rounds 0, OS waits 0
RW-excl spins 29, rounds 870, OS waits 25
RW-sx spins 1, rounds 30, OS waits 0
Spin rounds per wait: 0.00 RW-shared, 30.00 RW-excl, 30.00 RW-sx
------------------------
LATEST DETECTED DEADLOCK
------------------------
2020-09-15 14:46:15 0x7f7350cf3700
*** (1) TRANSACTION:
TRANSACTION 10298, ACTIVE 11 sec starting index read
mysql tables in use 1, locked 1
LOCK WAIT 3 lock struct(s), heap size 1136, 2 row lock(s), undo log entries 1
MySQL thread id 7623, OS thread handle 140132789073664, query id 6006191 127.0.0.1 root updating
update medicine_control set current_count=1 where id='2'
*** (1) HOLDS THE LOCK(S):
RECORD LOCKS space id 55 page no 4 n bits 88 index PRIMARY of table `jeecg-boot`.`medicine_control` trx id 10298 lock_mode X locks rec but not gap
Record lock, heap no 21 PHYSICAL RECORD: n_fields 12; compact format; info bits 0
0: len 1; hex 31; asc 1;;
1: len 6; hex 00000000283a; asc (:;;
2: len 7; hex 020000012510db; asc % ;;
3: len 6; hex e5a5b6e5a5b6; asc ;;
4: len 12; hex e79b98e5b0bce8a5bfe69e97; asc ;;
5: len 4; hex 80000001; asc ;;
6: len 4; hex 80000005; asc ;;
7: len 4; hex 80000000; asc ;;
8: len 5; hex 6a65656367; asc jeecg;;
9: len 5; hex 99a60eadf7; asc ;;
10: len 3; hex 6a6f62; asc job;;
11: len 5; hex 99a75e0780; asc ^ ;;
*** (1) WAITING FOR THIS LOCK TO BE GRANTED:
RECORD LOCKS space id 55 page no 4 n bits 88 index PRIMARY of table `jeecg-boot`.`medicine_control` trx id 10298 lock_mode X locks rec but not gap waiting
Record lock, heap no 4 PHYSICAL RECORD: n_fields 12; compact format; info bits 0
0: len 1; hex 32; asc 2;;
1: len 6; hex 00000000283b; asc (;;;
2: len 7; hex 01000002012bd8; asc + ;;
3: len 6; hex e788b7e788b7; asc ;;
4: len 6; hex e69f90e69f90; asc ;;
5: len 4; hex 80000002; asc ;;
6: len 4; hex 80000002; asc ;;
7: len 4; hex 80000000; asc ;;
8: len 5; hex 6c6979616e; asc liyan;;
9: len 5; hex 99a67b3730; asc {70;;
10: len 3; hex 6a6f62; asc job;;
11: len 5; hex 99a75e0780; asc ^ ;;
*** (2) TRANSACTION:
TRANSACTION 10299, ACTIVE 7 sec starting index read
mysql tables in use 1, locked 1
LOCK WAIT 3 lock struct(s), heap size 1136, 2 row lock(s), undo log entries 1
MySQL thread id 7625, OS thread handle 140133576603392, query id 6006195 127.0.0.1 root updating
update medicine_control set current_count=2 where id='1'
*** (2) HOLDS THE LOCK(S):
RECORD LOCKS space id 55 page no 4 n bits 88 index PRIMARY of table `jeecg-boot`.`medicine_control` trx id 10299 lock_mode X locks rec but not gap
Record lock, heap no 4 PHYSICAL RECORD: n_fields 12; compact format; info bits 0
0: len 1; hex 32; asc 2;;
1: len 6; hex 00000000283b; asc (;;;
2: len 7; hex 01000002012bd8; asc + ;;
3: len 6; hex e788b7e788b7; asc ;;
4: len 6; hex e69f90e69f90; asc ;;
5: len 4; hex 80000002; asc ;;
6: len 4; hex 80000002; asc ;;
7: len 4; hex 80000000; asc ;;
8: len 5; hex 6c6979616e; asc liyan;;
9: len 5; hex 99a67b3730; asc {70;;
10: len 3; hex 6a6f62; asc job;;
11: len 5; hex 99a75e0780; asc ^ ;;
*** (2) WAITING FOR THIS LOCK TO BE GRANTED:
RECORD LOCKS space id 55 page no 4 n bits 88 index PRIMARY of table `jeecg-boot`.`medicine_control` trx id 10299 lock_mode X locks rec but not gap waiting
Record lock, heap no 21 PHYSICAL RECORD: n_fields 12; compact format; info bits 0
0: len 1; hex 31; asc 1;;
1: len 6; hex 00000000283a; asc (:;;
2: len 7; hex 020000012510db; asc % ;;
3: len 6; hex e5a5b6e5a5b6; asc ;;
4: len 12; hex e79b98e5b0bce8a5bfe69e97; asc ;;
5: len 4; hex 80000001; asc ;;
6: len 4; hex 80000005; asc ;;
7: len 4; hex 80000000; asc ;;
8: len 5; hex 6a65656367; asc jeecg;;
9: len 5; hex 99a60eadf7; asc ;;
10: len 3; hex 6a6f62; asc job;;
11: len 5; hex 99a75e0780; asc ^ ;;
*** WE ROLL BACK TRANSACTION (2)
------------
TRANSACTIONS
------------
Trx id counter 10301
Purge done for trx's n:o < 10301 undo n:o < 0 state: running but idle
History list length 61
LIST OF TRANSACTIONS FOR EACH SESSION:
---TRANSACTION 421608706154464, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706153592, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706152720, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706151848, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706150976, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706150104, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706148360, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706147488, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706146616, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706145744, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706144872, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 421608706144000, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
---TRANSACTION 10298, ACTIVE 24 sec
3 lock struct(s), heap size 1136, 2 row lock(s), undo log entries 2
MySQL thread id 7623, OS thread handle 140132789073664, query id 6006198 127.0.0.1 root
--------
FILE I/O
--------
I/O thread 0 state: waiting for completed aio requests (insert buffer thread)
I/O thread 1 state: waiting for completed aio requests (log thread)
I/O thread 2 state: waiting for completed aio requests (read thread)
I/O thread 3 state: waiting for completed aio requests (read thread)
I/O thread 4 state: waiting for completed aio requests (read thread)
I/O thread 5 state: waiting for completed aio requests (read thread)
I/O thread 6 state: waiting for completed aio requests (write thread)
I/O thread 7 state: waiting for completed aio requests (write thread)
I/O thread 8 state: waiting for completed aio requests (write thread)
I/O thread 9 state: waiting for completed aio requests (write thread)
Pending normal aio reads: [0, 0, 0, 0] , aio writes: [0, 0, 0, 0] ,
ibuf aio reads:, log i/o's:, sync i/o's:
Pending flushes (fsync) log: 0; buffer pool: 0
2048 OS file reads, 24777 OS file writes, 11472 OS fsyncs
0.00 reads/s, 0 avg bytes/read, 0.59 writes/s, 0.54 fsyncs/s
-------------------------------------
INSERT BUFFER AND ADAPTIVE HASH INDEX
-------------------------------------
Ibuf: size 1, free list len 0, seg size 2, 0 merges
merged operations:
insert 0, delete mark 0, delete 0
discarded operations:
insert 0, delete mark 0, delete 0
Hash table size 34679, node heap has 1 buffer(s)
Hash table size 34679, node heap has 3 buffer(s)
Hash table size 34679, node heap has 1 buffer(s)
Hash table size 34679, node heap has 1 buffer(s)
Hash table size 34679, node heap has 1 buffer(s)
Hash table size 34679, node heap has 1 buffer(s)
Hash table size 34679, node heap has 2 buffer(s)
Hash table size 34679, node heap has 5 buffer(s)
0.00 hash searches/s, 0.27 non-hash searches/s
---
LOG
---
Log sequence number 2246453180
Log buffer assigned up to 2246453180
Log buffer completed up to 2246453180
Log written up to 2246453180
Log flushed up to 2246453180
Added dirty pages up to 2246453180
Pages flushed up to 2246453180
Last checkpoint at 2246453180
9242 log i/o's done, 0.14 log i/o's/second
----------------------
BUFFER POOL AND MEMORY
----------------------
Total large memory allocated 137363456
Dictionary memory allocated 835752
Buffer pool size 8192
Free buffers 6046
Database pages 2131
Old database pages 788
Modified db pages 0
Pending reads 0
Pending writes: LRU 0, flush list 0, single page 0
Pages made young 0, not young 0
0.00 youngs/s, 0.00 non-youngs/s
Pages read 1923, created 208, written 13739
0.00 reads/s, 0.00 creates/s, 0.00 writes/s
Buffer pool hit rate 1000 / 1000, young-making rate 0 / 1000 not 0 / 1000
Pages read ahead 0.00/s, evicted without access 0.00/s, Random read ahead 0.00/s
LRU len: 2131, unzip_LRU len: 0
I/O sum[0]:cur[0], unzip sum[0]:cur[0]
--------------
ROW OPERATIONS
--------------
0 queries inside InnoDB, 0 queries in queue
0 read views open inside InnoDB
Process ID=920, Main thread ID=140133220153088 , state=sleeping
Number of rows inserted 416, updated 2599, deleted 440, read 821958
0.00 inserts/s, 0.08 updates/s, 0.00 deletes/s, 0.11 reads/s
----------------------------
END OF INNODB MONITOR OUTPUT
============================

其中:

=====================================

2020-09-15 14:46:28 0x7f732fcff700 INNODB MONITOR OUTPUT

=====================================

这段记录的是查询死锁日志的时间

------------------------

LATEST DETECTED DEADLOCK

------------------------

这段后面记录的就是此次死锁的信息,分为几部分

事务1信息

也就是这一部分:

*** (1) TRANSACTION:

TRANSACTION 10298, ACTIVE 11 sec starting index read

mysql tables in use 1, locked 1

LOCK WAIT 3 lock struct(s), heap size 1136, 2 row lock(s), undo log entries 1

MySQL thread id 7623, OS thread handle 140132789073664, query id 6006191 127.0.0.1 root updating

update medicine_control set current_count=1 where id='2'

其中:

TRANSACTION 10298,是此事务的id。

ACTIVE 11 sec,活跃时间11秒。

starting index read,事务当前正在根据索引读取数据。

starting index read这个描述还有其他情况:

  1. fetching rows 表示事务状态在row_search_for_mysql中被设置,表示正在查找记录。
  2. updating or deleting 表示事务已经真正进入了Update/delete的函数逻辑(row_update_for_mysql)
  3. thread declared inside InnoDB 说明事务已经进入innodb层。通常而言 不在innodb层的事务大部分是会被回滚的。

mysql tables in use 1, locked 1,表示此事务修改了一个表,锁了一行数据。

MySQL thread id 7623,这是线程id

query id 6006191,这是查询id

127.0.0.1 root updating,数据库ip地址,账号,更新语句。

**update medicine_control set current_count=1 where id='2'**,这是正在执行的sql。

事务1持有的锁

也就是这段:

*** (1) HOLDS THE LOCK(S):

RECORD LOCKS space id 55 page no 4 n bits 88 index PRIMARY of table jeecg-boot.medicine_control trx id 10298 lock_mode X locks rec but not gap

Record lock, heap no 21 PHYSICAL RECORD: n_fields 12; compact format; info bits 0

0: len 1; hex 31; asc 1;;

1: len 6; hex 00000000283a; asc (:;;

2: len 7; hex 020000012510db; asc % ;;

3: len 6; hex e5a5b6e5a5b6; asc ;;

4: len 12; hex e79b98e5b0bce8a5bfe69e97; asc ;;

5: len 4; hex 80000001; asc ;;

6: len 4; hex 80000005; asc ;;

7: len 4; hex 80000000; asc ;;

8: len 5; hex 6a65656367; asc jeecg;;

9: len 5; hex 99a60eadf7; asc ;;

10: len 3; hex 6a6f62; asc job;;

11: len 5; hex 99a75e0780; asc ^ ;;

其中:

RECORD LOCKS,表示持有的是行级锁。

index PRIMARY,表示锁的是主键索引。

**table jeecg-boot.medicine_control**,表示锁的具体是哪个表。

trx id 10298,事务id,和上面的TRANSACTION相同。

lock_mode X locks,锁模式:排它锁。(X:排他锁,S:共享锁)

but not gap,非间隙锁

后面的0至11,代表锁的具体哪一行,0至11指的是表的第1至第12个字段,0开头的这行表示id列,可见锁的是id=1的那一行,可知这里的事务1就是上面的事务A。【0开头的这列对应本示例中的id字段这一列

事务1正在等待的锁

也就是这段:

*** (1) WAITING FOR THIS LOCK TO BE GRANTED:

RECORD LOCKS space id 55 page no 4 n bits 88 index PRIMARY of table jeecg-boot.medicine_control trx id 10298 lock_mode X locks rec but not gap waiting

Record lock, heap no 4 PHYSICAL RECORD: n_fields 12; compact format; info bits 0

0: len 1; hex 32; asc 2;;

1: len 6; hex 00000000283b; asc (;;;

2: len 7; hex 01000002012bd8; asc + ;;

3: len 6; hex e788b7e788b7; asc ;;

4: len 6; hex e69f90e69f90; asc ;;

5: len 4; hex 80000002; asc ;;

6: len 4; hex 80000002; asc ;;

7: len 4; hex 80000000; asc ;;

8: len 5; hex 6c6979616e; asc liyan;;

9: len 5; hex 99a67b3730; asc {70;;

10: len 3; hex 6a6f62; asc job;;

11: len 5; hex 99a75e0780; asc ^ ;;

其中:

index PRIMARY,表示等待的是主键的锁。

**table jeecg-boot.medicine_control**,表示等待的表。

trx id 10298,当前事务1的id。注意这里不是持有目标锁的事务的id,而是当前事务id。

lock_mode X locks,表示目标锁是排它锁。

but not gap,表示非间隙锁。

waiting,表示当前事务正在等待。

后面的0至11,表示等待的行,可见等待的是id=2的行的锁。

事务2信息

也就是这一段:

*** (2) TRANSACTION:

TRANSACTION 10299, ACTIVE 7 sec starting index read

mysql tables in use 1, locked 1

LOCK WAIT 3 lock struct(s), heap size 1136, 2 row lock(s), undo log entries 1

MySQL thread id 7625, OS thread handle 140133576603392, query id 6006195 127.0.0.1 root updating

update medicine_control set current_count=2 where id='1'

格式和事务1信息相同。

TRANSACTION 10299,表示事务id是10299。

**update medicine_control set current_count=2 where id='1'**,表示事务2正在执行的sql。

事务2正在持有的锁

也就是这段:

*** (2) HOLDS THE LOCK(S):

RECORD LOCKS space id 55 page no 4 n bits 88 index PRIMARY of table jeecg-boot.medicine_control trx id 10299 lock_mode X locks rec but not gap

Record lock, heap no 4 PHYSICAL RECORD: n_fields 12; compact format; info bits 0

0: len 1; hex 32; asc 2;;

1: len 6; hex 00000000283b; asc (;;;

2: len 7; hex 01000002012bd8; asc + ;;

3: len 6; hex e788b7e788b7; asc ;;

4: len 6; hex e69f90e69f90; asc ;;

5: len 4; hex 80000002; asc ;;

6: len 4; hex 80000002; asc ;;

7: len 4; hex 80000000; asc ;;

8: len 5; hex 6c6979616e; asc liyan;;

9: len 5; hex 99a67b3730; asc {70;;

10: len 3; hex 6a6f62; asc job;;

11: len 5; hex 99a75e0780; asc ^ ;;

可见事务2持有id=2的行锁,也就是说这里的事务2就是上面的事务B。

事务2正在等待的锁

也就是这段:

*** (2) WAITING FOR THIS LOCK TO BE GRANTED:

RECORD LOCKS space id 55 page no 4 n bits 88 index PRIMARY of table jeecg-boot.medicine_control trx id 10299 lock_mode X locks rec but not gap waiting

Record lock, heap no 21 PHYSICAL RECORD: n_fields 12; compact format; info bits 0

0: len 1; hex 31; asc 1;;

1: len 6; hex 00000000283a; asc (:;;

2: len 7; hex 020000012510db; asc % ;;

3: len 6; hex e5a5b6e5a5b6; asc ;;

4: len 12; hex e79b98e5b0bce8a5bfe69e97; asc ;;

5: len 4; hex 80000001; asc ;;

6: len 4; hex 80000005; asc ;;

7: len 4; hex 80000000; asc ;;

8: len 5; hex 6a65656367; asc jeecg;;

9: len 5; hex 99a60eadf7; asc ;;

10: len 3; hex 6a6f62; asc job;;

11: len 5; hex 99a75e0780; asc ^ ;;

可见事务2正在等待id=1的行锁。

死锁处理结果

也就是这段:

*** WE ROLL BACK TRANSACTION (2)

表示MySQL最终决定回滚事务2,也就是上面的事务B,这和上面事务B返回的死锁信息是一致的。

另外,日志里还记录的当前SESSION和事务列表,也就是这段:

------------

TRANSACTIONS

------------

Trx id counter 10301

Purge done for trx's n:o < 10301 undo n:o < 0 state: running but idle

History list length 61

LIST OF TRANSACTIONS FOR EACH SESSION:

---TRANSACTION 421608706154464, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706153592, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706152720, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706151848, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706150976, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706150104, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706148360, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706147488, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706146616, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706145744, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706144872, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 421608706144000, not started

0 lock struct(s), heap size 1136, 0 row lock(s)

---TRANSACTION 10298, ACTIVE 24 sec

3 lock struct(s), heap size 1136, 2 row lock(s), undo log entries 2

MySQL thread id 7623, OS thread handle 140132789073664, query id 6006198 127.0.0.1 root

可见多数的SESSION下的事务都没开始,注意最后的这段:

--- TRANSACTION 10298, ACTIVE 24 sec

3 lock struct(s), heap size 1136, 2 row lock(s), undo log entries 2

表示id为10298的事务(也就是事务1)还没提交。

关于mysql的八种锁

行锁(Record Locks)

行锁是作用在索引上的。

间隙锁(Gap Locks)

间隙锁是锁住一个区间的锁。

这个区间是一个开区间,范围是从某个存在的值向左直到比他小的第一个存在的值,所以间隙锁包含的内容就是在查询范围内,而又不存在的数据区间。

比如有id分别是1,10,20,要修改id<15的数据,那么生成的间隙锁有以下这些:(-∞,1),(1,10),(10,20),此时若有其他事务想要插入id=11的数据,则需要等待。

间隙锁是不互斥的。

作用是防止其他事务在区间内添加记录,而本事务可以在区间内添加记录,从而防止幻读。

在可重复读这种隔离级别下会启用间隙锁,而在读未提交和读已提交两种隔离级别下,即使使用select ... in share mode或select ... for update,也不会有间隙锁,无法防止幻读。

临键锁(Next-key Locks)

临键锁=间隙锁+行锁,于是临键锁的区域是一个左开右闭的区间。

隔离级别是可重复读时,select ... in share mode或select ... for update会使用临键锁,防止幻读。普通select语句是快照读,不能防止幻读。

共享锁/排他锁(Shared and Exclusive Locks)

共享锁和排它锁都是行锁。共享锁用于事务并发读取,比如select ... in share mode。排它锁用于事务并发更新或删除。比如select ... for update

意向共享锁/意向排他锁(Intention Shared and Exclusive Locks)

意向共享锁和意向排他锁都是表级锁。

官方文档中说,事务获得共享锁前要先获得意向共享锁,获得排它锁前要先获得意向排它锁。

意向排它锁互相之间是兼容的。

插入意向锁(Insert Intention Locks)

插入意向锁锁的是一个点,是一种特殊的间隙锁,用于并发插入。

插入意向锁和间隙锁互斥。插入意向锁互相不互斥。

自增锁(Auto-inc Locks)

自增锁用于事务中插入自增字段。5.1版本前是表锁,5.1及以后版本是互斥轻量锁。

自增所相关的变量有:

auto_increment_offset,初始值

auto_increment_increment,每次增加的数量

innodb_autoinc_lock_mode,自增锁模式

其中:

innodb_autoinc_lock_mode=0,传统方式,每次都产生表锁。此为5.1版本前的默认配置。

innodb_autoinc_lock_mode=1,连续方式。产生轻量锁,申请到自增锁就将锁释放,simple insert会获得批量的锁,保证连续插入。此为5.2版本后的默认配置。

innodb_autoinc_lock_mode=2,交错锁定方式。不锁表,并发速度最快。但最终产生的序列号和执行的先后顺序可能不一致,也可能断裂。

关于死锁的解锁

  • InnoDB存储引擎会选择回滚undo量最小的事务【持有较少锁的事务(事务id较小的那个)】

  • 选择直接kill掉进程

    • 查看进程:show processlist
    • kill:kill id
    • 验证:show OPEN TABLES where In_use > 0;
